Ship loader: the secret of precise structure and efficient operation

In a busy port, the ship loader is like a skilled craftsman, with its unique structure and exquisite work process, it accurately delivers bulk cargo to the arms of ocean-going ships.

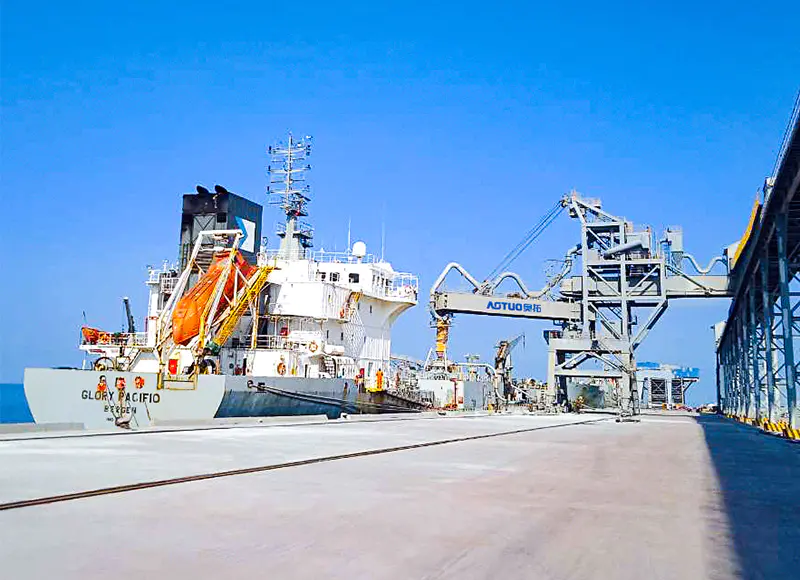

Ship loader, a giant in port operations, is amazing in its complex structure and exquisite design. It is mainly composed of the following key parts working closely together:

Boom and belt conveyor: The boom is like the "long arm" of the ship loader, and the belt conveyor is the "blood vein" of this long arm. They work together to gently lift the bulk material from the ground or storage device, and slowly extend it to the top of the cabin along a carefully designed trajectory.
Transition and connection: Between the boom and the cabin, the transition belt conveyor cleverly plays the role of a bridge. It ensures that the material will neither spill nor accumulate during the transfer process, and realizes a smooth transition from the ground to the cabin.
Telescopic chute: This is the "dexterous finger" of the ship loader. It can flexibly adjust its length and angle according to the size and shape of the cabin to ensure that the materials can fall into every corner of the cabin accurately.
Movement and support: The bottom of the ship loader is equipped with a running device, which enables it to move freely on the track of the dock to cover different berths and ships. The gantry and tower are like solid foundations, which steadily support the weight of the entire ship loader to ensure its stability and safety during operation.
Pitch and slew: In order to allow the boom to cover a wider operating area, the ship loader is also equipped with a pitch device and a slew device. The pitch device enables the boom to swing up and down to adapt to the loading requirements of different heights; while the slewing device allows the boom to rotate freely in the horizontal direction to achieve all-round operation.

The working principle of the ship loader is a perfect combination of wisdom and strength. When the bulk material is transported to the starting end of the ship loader, a precise loading drama is quietly staged. The ground conveying system (such as bucket wheel reclaimer, stacker reclaimer, etc.) continuously transports the bulk material to the tail car part of the ship loader. The belt conveyor on the tail car is then started, and the material is continued to be conveyed forward to the starting end of the boom belt conveyor.
As the boom belt conveyor is started, the material begins to be slowly lifted and moves along the preset trajectory to the top of the cabin. In this process, the transition belt conveyor ensures the smoothness and continuity of the material during the transfer process.

When the material is about to reach the top of the cabin, the telescopic chute is adjusted according to the actual size and loading requirements of the cabin. Through precise control systems and sensor technology, the telescopic chute can be accurately positioned at the designated position of the cabin to ensure that the material can fall into the cabin evenly and accurately.

Under the guidance of the telescopic chute, the material is loaded into the cabin in a continuous and stable manner. At the same time, the running device and the rotating device of the loader are adjusted and the path planning is optimized as needed to ensure efficient and accurate loading of the entire cabin.

The entire loading process is a reciprocating process. As the material in the cabin continues to accumulate, the loader will move and adjust according to the loading progress and the actual situation of the ship to ensure the smooth progress of the entire loading operation.

Ship loaders, with their precise structure and efficient working principle, play an irreplaceable role in bulk material handling at ports. They are not only one of the important symbols of port modernization, but also an important force in promoting the development of global economic trade. With the continuous advancement of technology and the continuous development of the market, ship loaders will show a more brilliant prospect in the future.
